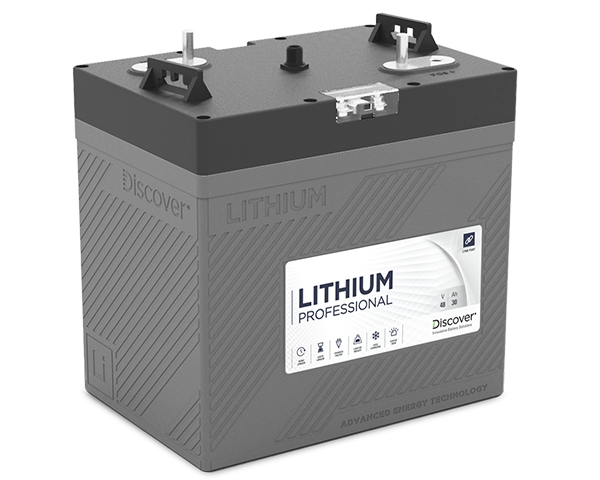

Discover LITHIUM PROFESSIONAL Batteries

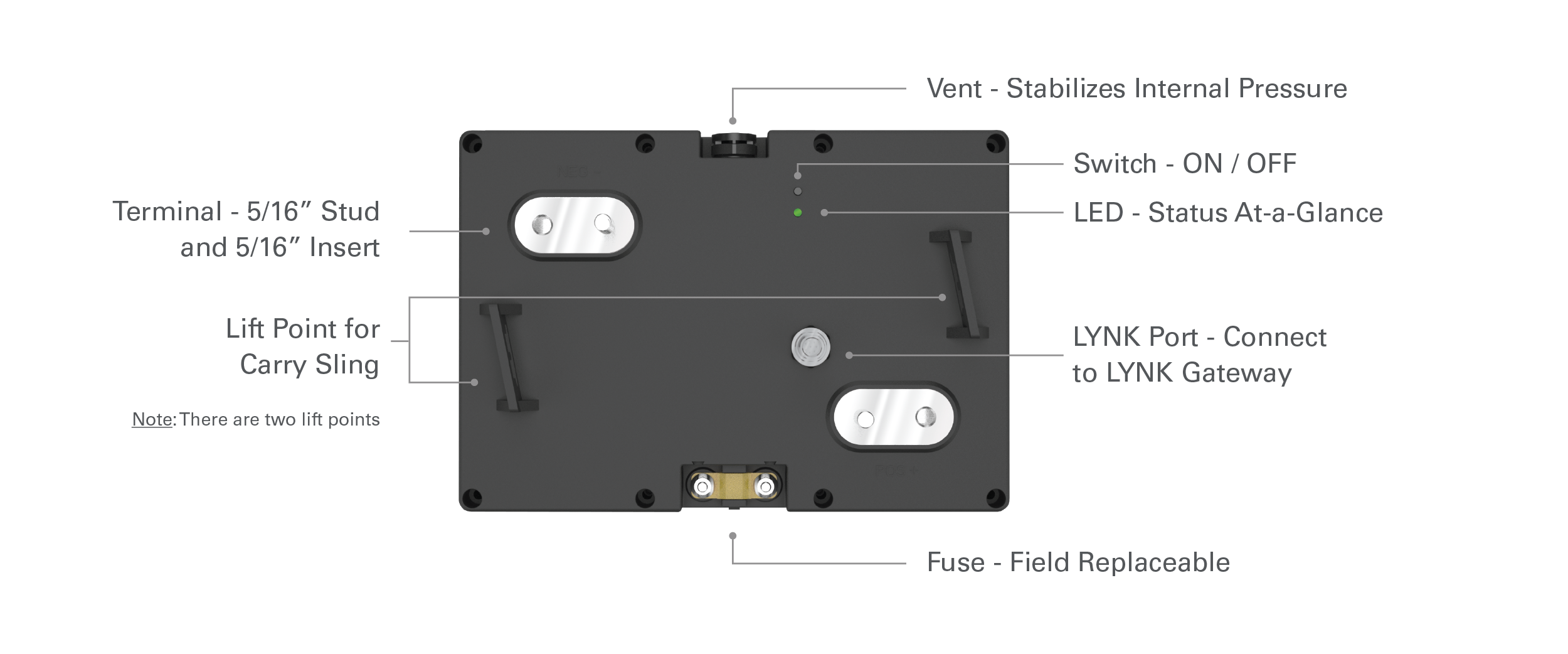

Product Features
LYNK Port
- J1939 CAN Communication
- Multi-battery BMS communication
- Connect battery string to LYNK Gateway
- Remote ON / OFF
External Fuse
- Field serviceable fuse protects your investment from abuse or misuse
ON/OFF Status
- ON/OFF Switch
- At-a-glance multi-colour status LED
High-Current BMS
- Plug-and-Play system wide BMS communication
- Sets voltage, broadcasts SoC and temperature
- High Peak Discharge and 1/C Continuous Charge Current
Cold Charging
- Integrated self-heating
- Charging from -20˚C / -4˚F
Product Features
Optional Accessories
- LYNK Devices
- Remote State of Charge Display
- Network Cables
- Configure LYNK Device
- Monitor Discover Lithium Batteries
- Troubleshoot and download battery logs
- Simulate and validate integration of Discover Lithium Batteries
Accessories

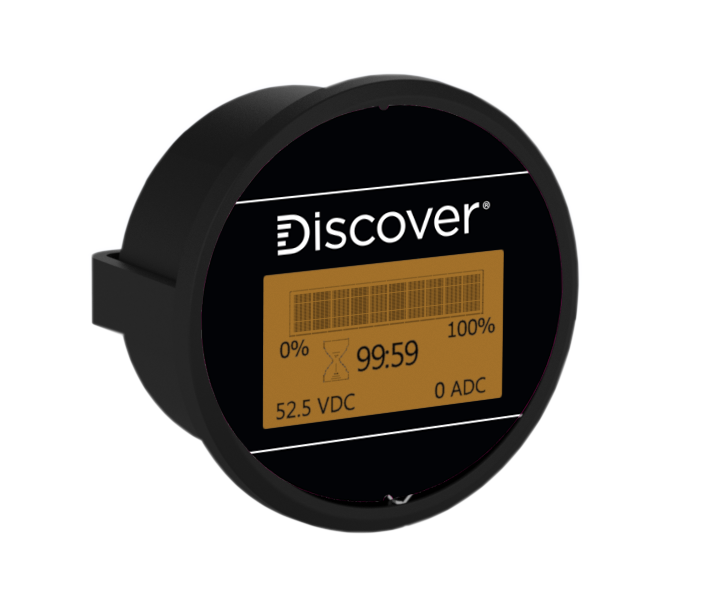

CAN Bus Battery Discharge Indicator (Type A) 950-0044
COMPATIBILITY:
AES LiFePO4 batteries: 12-48-6650, 12-36-6700, 14-24-2800, 14-36-3000, 14-48-3000, 12-36-6700
LITHIUM PROFESSIONAL batteries: DLP-GC2-12V, DLP-GC2-24V, DLP-GC2-36V, DLP-GC2-48V
The 950-0044 is a fully featured Battery Discharge Indicator (BDI) that communicated with AES LiFePO4 Mobile Industrial and LITHIUM PROFESSIONAL batteries and presents visualization by LCD of the battery's State of Charge, Voltage, Power, Charge and Discharge Energy, Battery Firmware, and Time to Go.

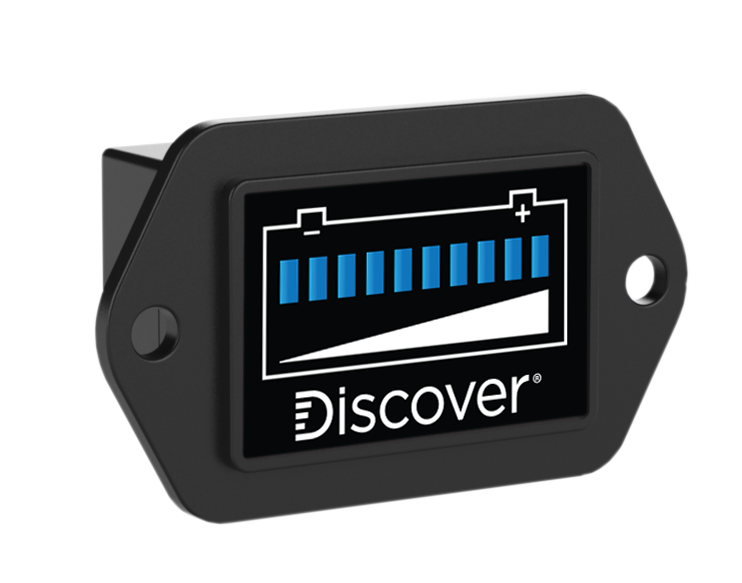

CAN Bus Battery Discharge Indicator (Type B) 950-0039
COMPATIBILITY:
AES LiFePO4 batteries: 12-48-6650, 12-36-6700, 14-24-2800, 14-36-3000, 14-48-3000, 12-36-6700
LITHIUM PROFESSIONAL batteries: DLP-GC2-12V, DLP-GC2-24V, DLP-GC2-36V, DLP-GC2-48V
The 950-0039 is a Battery Discharge Indicator (BDI) that communicates with AES LiFePO4 Mobile Industrial and LITHIUM PROFESSIONAL batteries presenting the battery's state of charge by incremental LED segments.

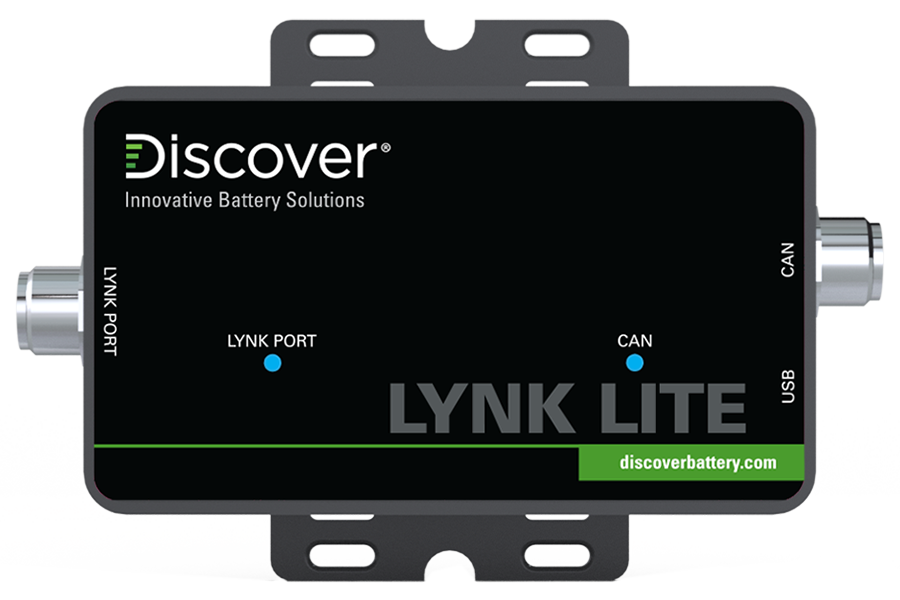

LYNK LITE Communication Gateway
LYNK II
Advanced Integration - Faster Charging
Unlock the full potential of a LITHIUM PROFESSIONAL Battery by enabling the BMS to optimize and dynamically manage the charge configurations of the world’s best industrial chargers and mobile inverter chargers. The LYNK PORT on each LITHIUM PROFESSIONAL battery allows for real-time closed-loop communication between multiple batteries and with a charger, or inverter charger, using LYNK II to aggregate and communicate State of Charge.
Additional Accessories
IP-65 rated network cables suitable for wet and humid environments are available for IP-67 rated LITHIUM PROFESSIONAL batteries.
- DLP B2B-400 (COMM Cable 0.4 meters / 15.75 inches) | PN: 950-0035
- DLP TOL-7600 (COMM Cable 7.6 meters / 299.25 inches) | PN: 950-0037
- DLP TOL-1800 (COMM Cable 1.8 meters / 70.87 inches) | PN: 950-0036
- DLPT Connector (COMM T Connector) | PN: 950-0041
- DLP T Connector (COMM T Connector) with DLP B2B-400 (COMM Cable 0.4 meters / 15.75 inches) | PN: 950-0038

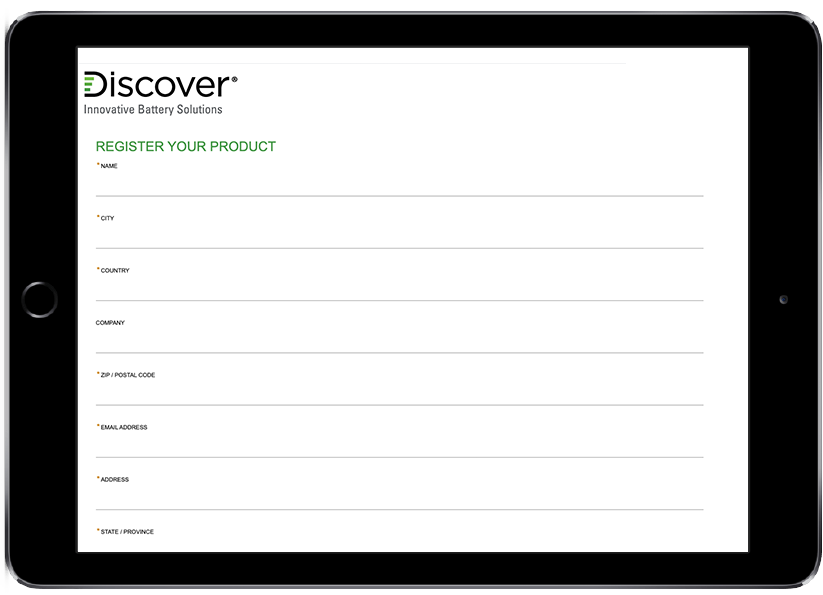

Product Registration
Discover LITHIUM Professional offers an industry-leading warranty to ensure years of trouble-free, high-performance operation.
Click on the REGISTER PRODUCT button and use the form to register your product(s) to validate your warranty.
