LYNK
ACCESS

Configure, Monitor, Troubleshoot, and Simulate Discover Lithium Batteries


LYNK ACCESS software monitors and presents state-of-charge, battery current, voltage, and temperature for Discover Lithium battery systems.

LYNK ACCESS configures CAN bus communication protocols for LYNK GATEWAY devices and provides troubleshooting access to Discover Lithium batteries for installers and service technicians.

LYNK ACCESS establishes a virtual workbench that simulates AES LiFePO4, LITHIUM PROFESSIONAL, and AES RACKMOUNT signals, reducing the engineering time and effort required to integrate them with other systems.

LYNK ACCESS Features

  • Configure CAN communication protocols
  • Monitor real-time SoC, current, voltage, temperature, and faults
  • View configuration, lifetime energy throughput
  • Download diagnostic reports for Discover Lithium batteries
  • Virtual battery simulation of status, faults, and protections
  • Download and export battery log files*
  • Update battery firmware*
  • Requires LYNK LITE or LYNK II

*AES PROFESSIONAL, AES RACKMOUNT

Troubleshoot
  • View configuration, energy, and fault history
  • Download diagnostic report
Monitor
  • Real-time State of Charge
  • Current, voltage, temperature, and faults
  • Lifetime energy throughput
Configure
  • Standard or custom CAN communication
  • Program relays for LYNK II
Simulation
  • Virtual battery simulation of status, faults, and protections
  • Validate other devices with a digital battery signal
  • Evaluate system response to battery

Compatibility

Software Operating Requirements

64-bit Windows 10

LYNK Communication Gateways

LYNK II connects with USB Type B Mini (included)

LYNK LITE connects with USB Type B Micro (included)

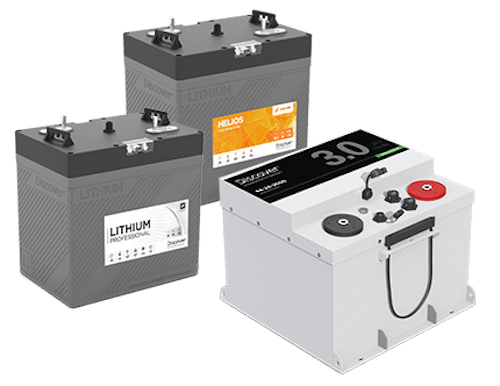

Battery Compatibility

AES LiFePO4: 44-24-2800, 44-48-3000, 42-48-6650

AES RACKMOUNT: 48-48-5120, 48-48-5120-H

AES LiFePO4 Motive: 14-36-3000, 14-48-3000

Discover LITHIUM PROFESSIONAL: DLP-GC2-12V, DLP-GC2-24V, DLP-GC2-36V, DLP-GC2-48V

Communication Protocols

  • CANopen
  • Serial CAN
  • Victron Energy
  • SMA Sunny Island
  • Studer Innotec
  • Schneider Electric
  • Sol-Ark
  • Outback Energy (Pending)
  • RV-C
  • SPE Charger (Pending)

Available Support for Developers

  • Simulate battery status, faults, and protections for integration testing with other systems
  • CANopen support documentation
  • Serial CAN support documentation
  • RV-C support documentation

How do I work with Discover?

Discover sells business-to-business through its global network of factory warehouses and directly to Original Equipment Manufacturers, solar industry distributors and installers. We do not sell directly to end users or homeowners.

Tell us about you and your company, and a member of our sales team will reach out to you shortly.

Compatible Communication Products

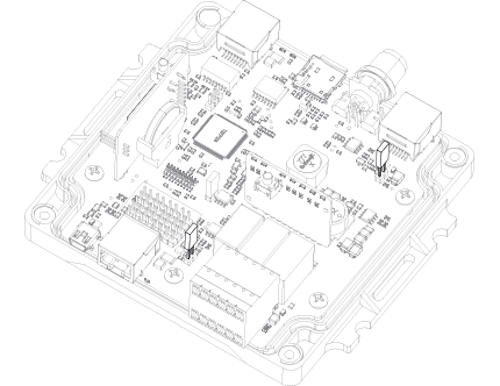

LYNK II

Advanced Integration - Faster Charging

Unlock the full potential of a AES PROFESSIONAL, AES RACKMOUNT, and AES LiFePO4 Mobile Industrial battery by enabling the BMS to optimize and dynamically manage the charge configurations of the world's best industrial chargers and mobile inverter-chargers. The LYNK PORT on each AES PROFESSIONAL, AES RACKMOUNT, and AES LiFePO4, allows for real-time closed-loop communication between multiple batteries and with a charger, or inverter-charger, using LYNK II to aggregate and communicate State of Charge.


LYNK LITE Communication Gateway

LYNK LITE Communication Gateway aggregates and displays the State of Charge for a AES PROFESSIONAL, and AES LiFePO4 batteries in a compact package suitable for in-line integration in motive machine battery compartments.
