LYNK LITE
Communication Gateway


LYNK LITE Communication Gateway aggregates and displays the State of Charge for AES PROFESSIONAL and AES LiFePO4 batteries in a compact package suitable for in-line integration in motive machine battery compartments.

Unlock the full potential of Discover Energy System Lithium batteries by integrating them with inverter-chargers, on and off-board chargers, displays, load centers, motor controls, PLCs, and telematics to optimize machine performance.

Improve system integration using multiple communication interfaces and CAN-based protocols, including RV-C, CANopen, J1939, or serial CAN.

Turn a good machine into a great one with ultra-fast charging, real-time status, predictive equipment control and diagnostics.

Product Features


Status View
  • At-A-Glance State of Charge LED Indicator
  • Communication Status
Ports
  • LYNK Port - IEC (M12 -5 PIN)
  • CAN OUT - IEC (M12 -5 PIN)
  • USB Device - Type B - Micro
Communication
  • Configurable - CANopen, Serial CAN, J1939, RV-C
Parallel Power
  • A single LYNK Gateway supports up to 20 parallel batteries
Real Time Data
  • State of Charge (SOC), voltage, temperature and battery status are communicated in real-time to on-board devices
  • Charge voltage and current targets, voltage, temperature, current, and battery diagnostics
FULL Compatibility
  • Battery charge settings are automatically programmed for multiple brands of industrial chargers
  • Configurable CANopen
Faster Charging
  • Up to 25% faster 0% to 100% SOC charging with dynamic charge management
Quick Install
  • Fast Installation
  • No special tools
  • Plug-and-play
Simple Service
  • Upload Battery Firmware
  • Download Battery Data logs
  • Available LYNK ACCESS PC Software for Data Analysis and Configuration
Certification Standards
  • CE
MAXIMIZE THE BATTERY
  • Internal cell balancing is optimized, enabling the highest usable capacity and true 100% depth of discharge over the entire life of the battery

LYNK ACCESS PC Software

  • Configure LYNK Device
  • Monitor Discover Energy Systems Lithium Batteries
  • Troubleshoot and monitor Discover Energy Systems Lithium batteries
  • Simulate and validate integration of Discover Energy SystemsLithium Batteries

The LYNK LITE Advantage

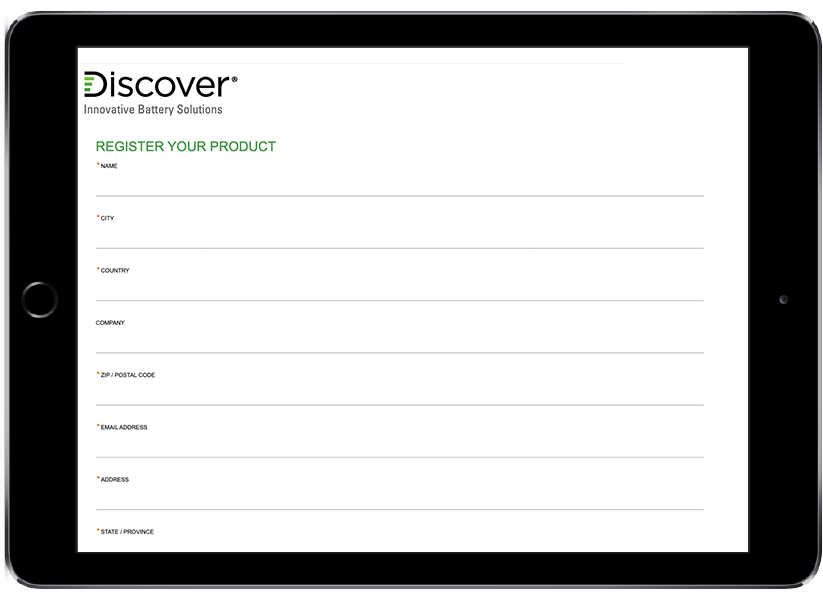

Product Registration

Click on the REGISTER PRODUCT button and use the form to register your product(s) to validate your warranty.

Compatible Product

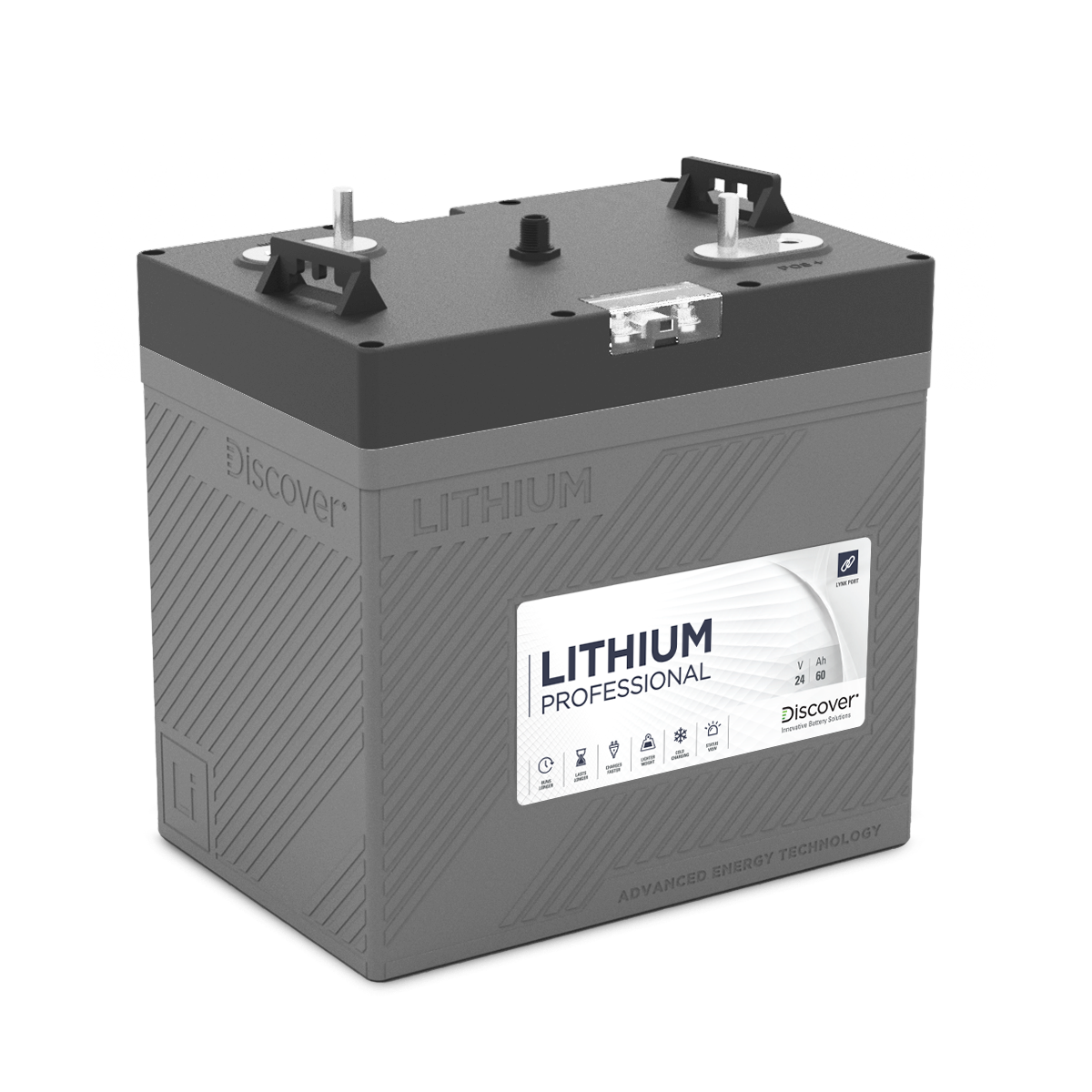

AES PROFESSIONAL


AES LiFePO4

Accessories



Additional Accessories

IP-65 rated network cables suitable for wet and humid environments are available for IP-67 rated AES PROFESSIONAL.

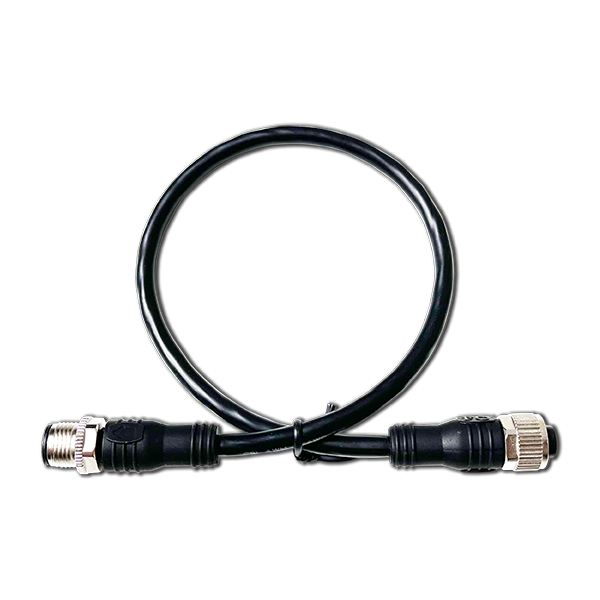

  • DLP B2B-400 (COMM Cable 0.4 meters / 15.75 inches) | PN: 950-0035
  • DLP TOL-7600 (COMM Cable 7.6 meters / 299.25 inches) | PN: 950-0037
  • DLP TOL-1800 (COMM Cable 1.8 meters / 70.87 inches) | PN: 950-0036
  • DLPT Connector (COMM T Connector) | PN: 950-0041
  • DLP T Connector (COMM T Connector) with DLP B2B-400 (COMM Cable 0.4 meters / 15.75 inches) | PN: 950-0038

Battery Compatibility

Specifications for Developers

  • Serial CAN
  • CANopen
  • RV-C

Available Support for Developers

  • Simulate battery status, faults, and protections for integration testing with other systems*
  • CANopen support documentation*
  • Serial CAN support documentation*

*Available to select partners - Apply for access below.

    Additional Communication Products

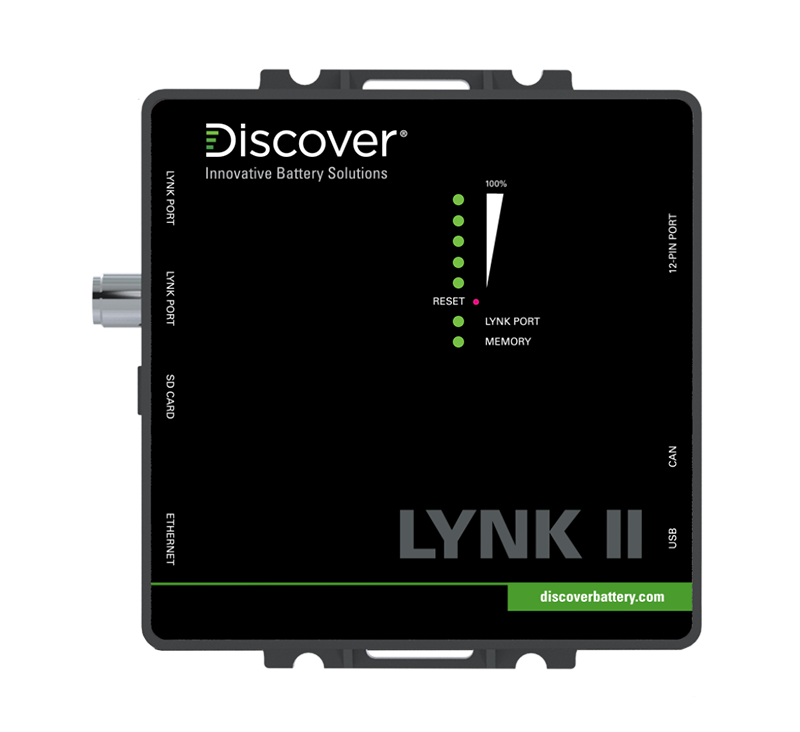

    LYNK II

    Advanced Integration - Faster Charging

    Unlock the full potential of AES PROFESSIONAL and AES LiFePO4 Mobile Industrial battery by enabling the BMS to optimize and dynamically manage the charge configurations of the world's best industrial chargers and mobile inverter chargers. The LYNK PORT on each AES PROFESSIONAL and AES LiFePO4 allows for real-time closed-loop communication between multiple batteries and with a charger, or inverter charger, using LYNK II to aggregate and communicate State of Charge.
